The Moonlight is a brand new HD FPV system from Walksnail that won't break the bank. Boasting 4k/60fps, amazing low light detail, EIS and Gyroflow technology, and a host of other features to make this the HD system on all your frames!

Features
Starlight Camera for low-light
Supports Gyroflow
Dual Antennas
Built-in EIS
7.4V-25.2V
4k/60FPS
Natural 160° FOV
SD card slot

Compatible Goggles/VRX
Walksnail Avatar Goggles X
Walksnail Avatar HD
Fat Shark Dominator Digital HD
Walksnail VRX

Specifications
Firmware name: AvatarMoonlight_Sky_X.X.X
Communication Frequency: 5.725-5.850GHz
Transmitter Power (EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
1/O Interface: JST1.0*4(Power in)JST0.8*6(USB)，Micro SD card Slot；IPEX-1
Sensor: Starlight sensor
FOV: Max 160°
Aperture: F2.1
Shutter: Rolling shutter
ISO: 100-25600
Recording resolution: 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
Max Mbps: 150Mbps
Video format: MP4 (H.264)
3D DNR: Support
Gyroflow: Support
Built-in EIS: Support
Wide Power Input: 7.4V-25.2V
Power consumption: 12V@1.4A, 8V@2.2A
Memory card type: U3 MicroSD, Max 256G
Camera size: 19.6mm*19mm*24mm
VTX size: 15.3mm*34.5mm*34.5mm
VTX Installation hole distance: 20*20mm/25*25mm (M2)
Weight: 38.5g(Antenna not included)
OSD: Canvas mode
Latency: Average delay 22ms
Antenna: 2 (IPEX)
Filter: ND8

VTX ANTENNA
Polarization: LHCP
Frequency range: 5600MHz-6000MHz
Average Gain: 1.9dBi
VSWR: ＜1.5
Input Impedance: 50Ω
Interface: IPEX-1
Dimension: R15 X 45mm （without cable）
Weight: 2g

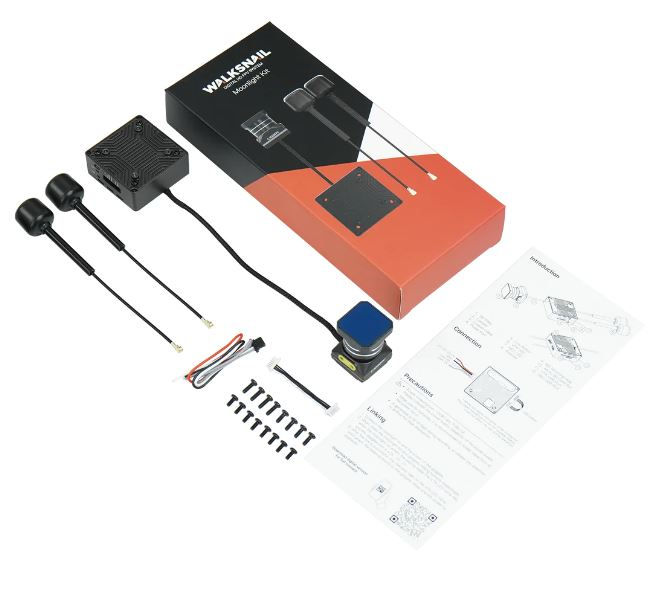

Includes
1x Walksnail Moonlight Kit w/ VTX Unit + Camera
1x Mounting Hardware
1x Wire Harness
1x ND8 Filter
2x Antenna
1x Manual
